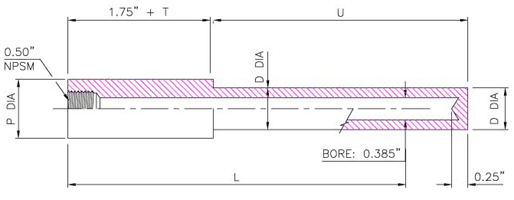

Сварка враструб, ступенчатый хвостовик, диаметр отверстия 3/8", с удлинительной шейкой Получить каталог
Спецификации
| Номер детали | P | U | T | L | D |
| 075TW-0450-SWL-385 |
Номинально 3/4"
Диаметр 1,05" |
2-1/4" | 2" | 6" | 49/64" |
| 075TW-0750-SWL-385 | 7-1/2" | 3" | 9" | 49/64" | |
| 075TW-1050-SWL-385 | 10-1/2" | 3" | 12" | 49/64" | |
| 075TW-1350-SWL-385 | 13-1/2" | 3" | 15" | 49/64" | |
| 075TW-1650-SWL-385 | 16-1/2" | 3" | 18" | 49/64" | |
| 075TW-2250-SWL-385 | 22-1/2" | 3" | 24" | 49/64" | |
| 100TW-0450-SWL-385 |
Номинально 1"
Диаметр 1,315" |
4-1/2" | 2" | 6" | 7/8" |
| 100TW-0750-SWL-385 | 7-1/2" | 3" | 9" | 7/8" | |
| 100TW-1050-SWL-385 | 10-1/2" | 3" | 12" | 7/8" | |
| 100TW-1350-SWL-385 | 13-1/2" | 3" | 15" | 7/8" | |
| 100TW-1650-SWL-385 | 16-1/2" | 3" | 18" | 7/8" | |
| 100TW-2250-SWL-385 | 22-1/2" | 3" | 24" | 7/8" |
